Timber Frame Craftsmanship in a Small Package

A single Mini provides up to 12 square feet of display space, and comes fully assembled and ready to install. The design of the Mini is playful yet robust, and the price is right. We designed this unit for a bike trail project and liked it so much that we decided to offer it for general sale. Like all of our kiosks, the mini features hand-cut, traditional timber framing joinery (mortise and tenon), and naturally rot-resistant timber from northern New England.

Pricing for Mini Kiosks

Single unit: $1,200

2-4 units: $1,150 each

5 or more: $1,100 each

Note: Prices are F.O.B. Vershire, Vermont, Delivery quotes upon request. Site preparation and installation are NOT included in unit cost.

To order: Send us an email » or call: 802-685-7974 ext. 3

Lead time: Ranges from 2 – 8 weeks, depending on the season and demand.

Mini Kiosk Specs

What’s in the Kit:

  • Kiosk fully assembled (without roofing metal)
  • Roofing metal, pre-drilled for screws, and packaged in cardboard.
  • A single instruction page, along with the screws needed to fasten the roofing metal.

Details:

  • All Timber: rough-sawn white oak with 1/4” chamfer throughout.
  • Timber Joinery: secured with white oak or locust pegs.
  • Roof: Top has band sawn curve with 5/4 pine rooflet with roofing metal fastened with screws.
  • Sign Area: Signboard is made from tongue-in-groove Eastern White Cedar. It can be stained or left unstained, see options below. There is 12 square feet of potential signage space on the mini if both sides are used. 6 Square feet on the font is lockable display space, 6 square feet on the back serves as additional (unlocked) signboard area.
  • Door: To cover the signage area on the front of the mini, a Cherry-framed plexiglass door is included.  The door is hinged on top and has pin with hole to receive padlock (padlock not provided).

Mini Kiosk Installation

Our kiosks are simple to install and the work can be readily done by a group of 3-4 people following our instructions. If you would like help with installation, we’ll be happy to provide a quote. The following are basic instructions (we provide more comprehensive instructions with your kiosk):

  • Dig two 12″ holes, 4′-3″ deep, 2′ 9″ apart on center.
  • Attach roofing metal to kiosk and place in holes, being careful to get it plumb.
  • Backfill holes around posts with crushed stone (no concrete footings)

Standard Options for Mini Kiosks



  • Roofing Metal: Slate Blue or Forest Green – see color samples here
  • Stained signboard: Paint signboard: The standard signboard is unstained, and will gray with time. We offer solid stains by Arborcoat in Mission Brown and Imperial Gray – $40/ unit

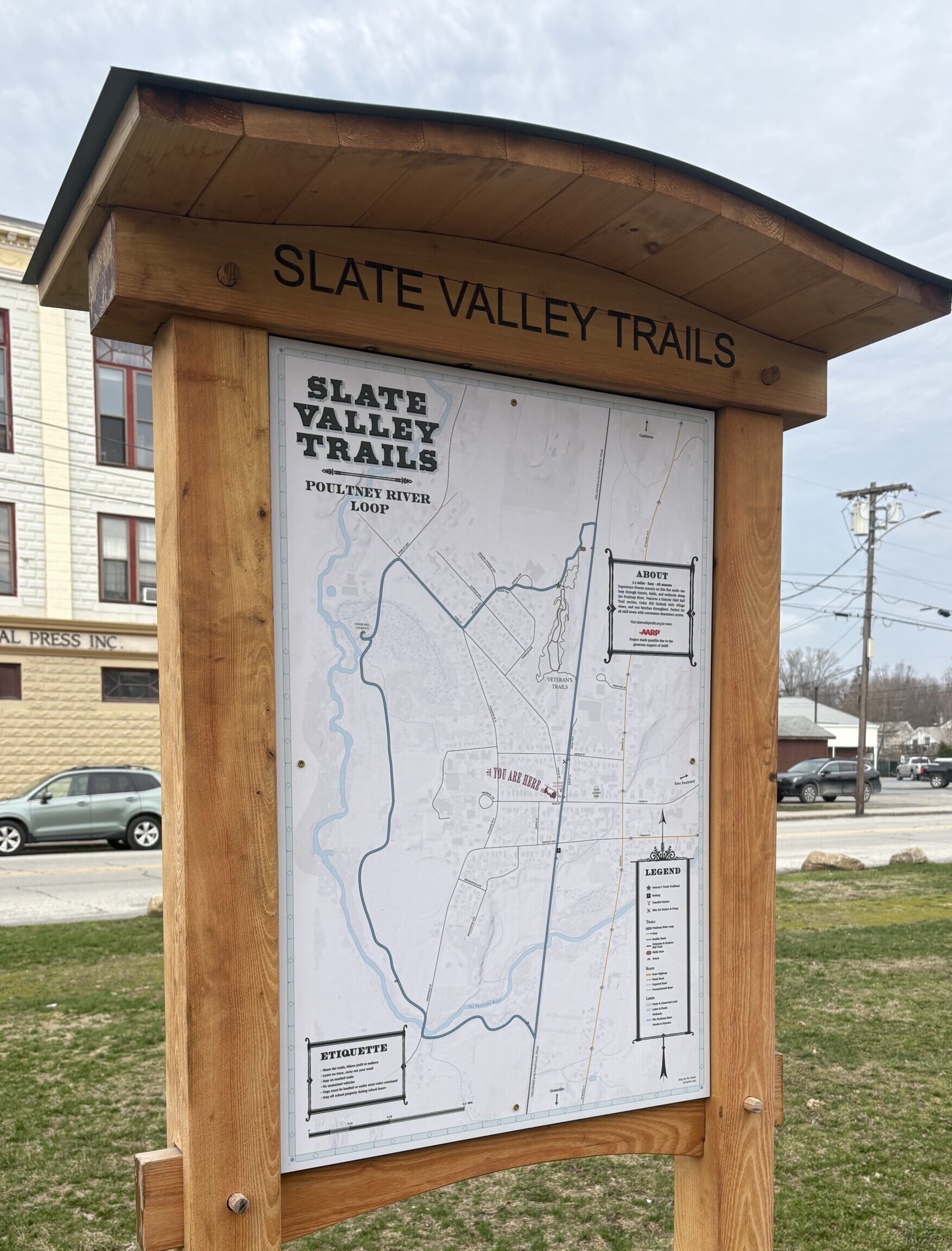

  • Location Signs: routed into face of upper crossbar, $190 for up to 14 letters maximum (See photo above of “Kingdom Trails” mini)
  • Posts Options: Upgrade to black locust for ultimate rot resistance for $300/unit. Still a local species.
  • Double-sided: We can put a door on both sides of the unit. Timber posts will be increased to 5″ x 5″ – $450
  • Customizing: We are happy to make any adjustments you have in mind, but the change from our product line to a design/build arrangement costs $55/hr for design work, plus the net change in cost of materials, plus $44/hr for estimated cost of labor changes.

Add a Brochure or Registration Box to Your Kiosk

Do you need storage for maps or a registry? These simple, weather-tight boxes can be purchased to install on your kiosk. We send them with pre-drill bits and screws, so that our clients can install them on their kiosks wherever they like.

Brochure boxes: These boxes will store a tri-fold brochure or map, displaying them through their plexiglass front. – $200 ($225 stained)

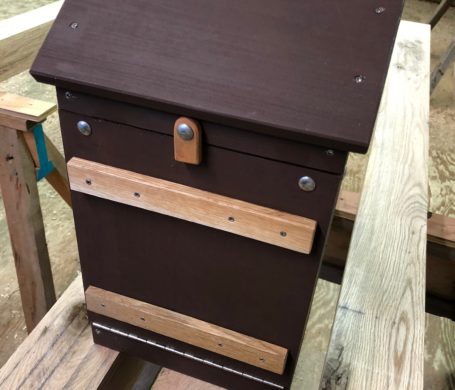

Registration boxes: The front of these registration boxes folds down to reveal a sturdy writing surface with a clasp to hold a small stack of 8.5″ x 11″ paper.- $250 ($275 stained)

Delivery & Shipping

Our prices assume pickup at our shop in Vershire, VT. A single Mini kiosk can fit readily in to the back of a pickup truck.  Please discuss vehicle requirements with us depending on your order.

  • Delivery: We will charge the Federal Standard loaded mileage rate of $1.50/mile each way to deliver, plus $20/unit for loading and unloading, respectively.

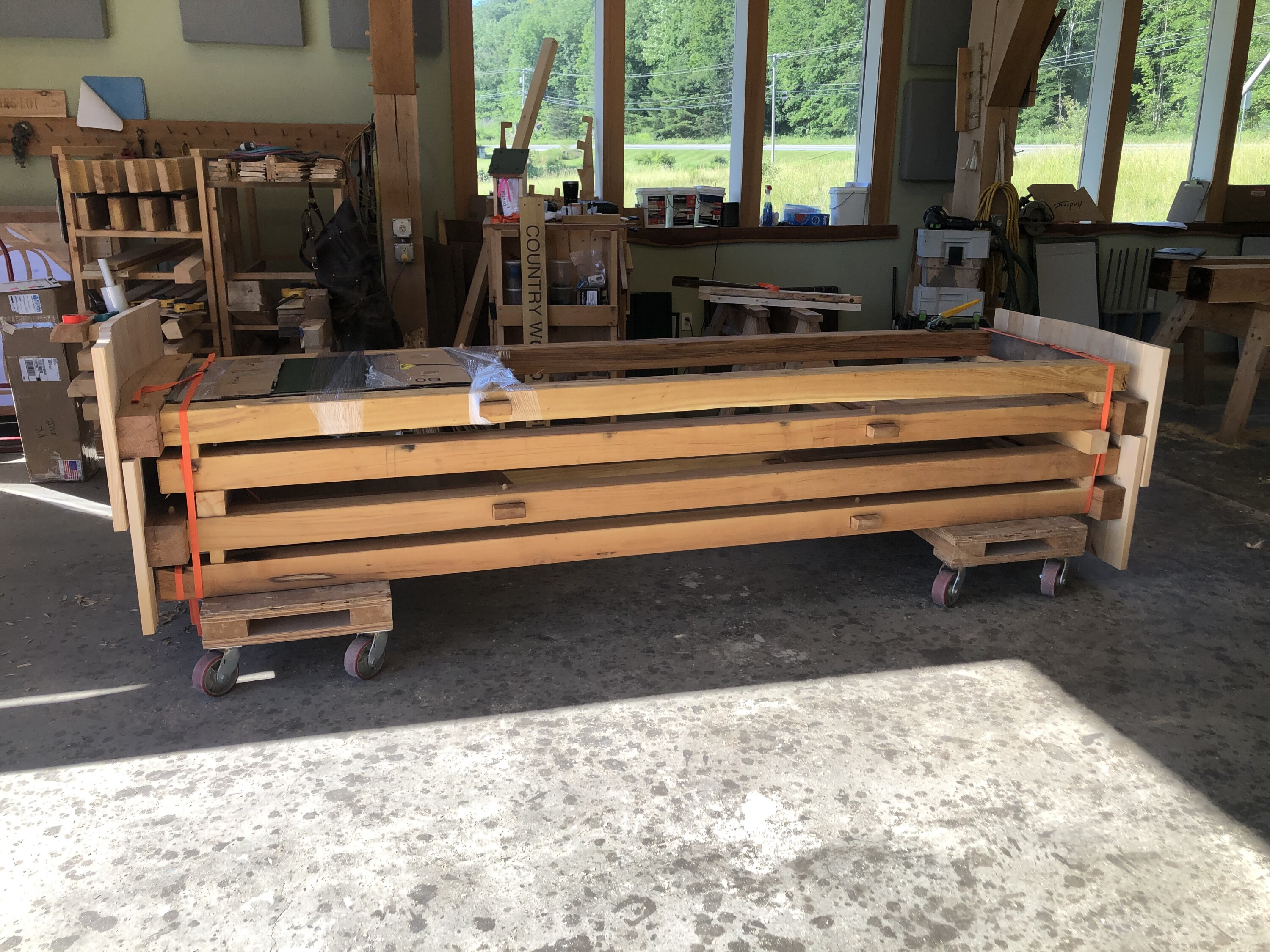

  • Shipping: For single units to be delivered more than 200 miles from Vershire it will probably be more economical for us to ship by common carrier, in which case the unit will come on a custom-made pallet, and protected by plywood. Please contact us for a current packing and shipping quote. There must be a forklift available at the delivery address.
