Additional Covered Space Rarely Goes Unused

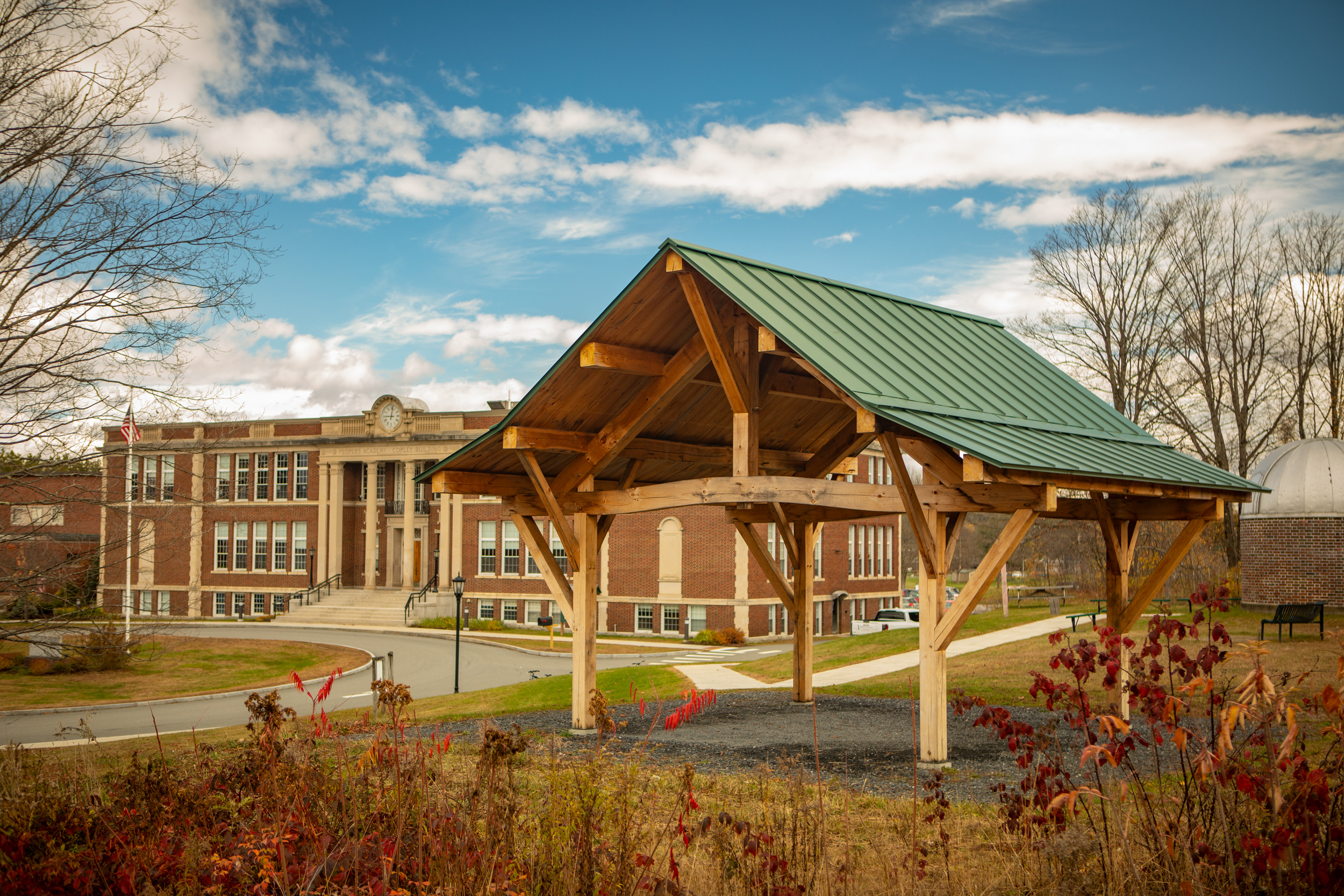

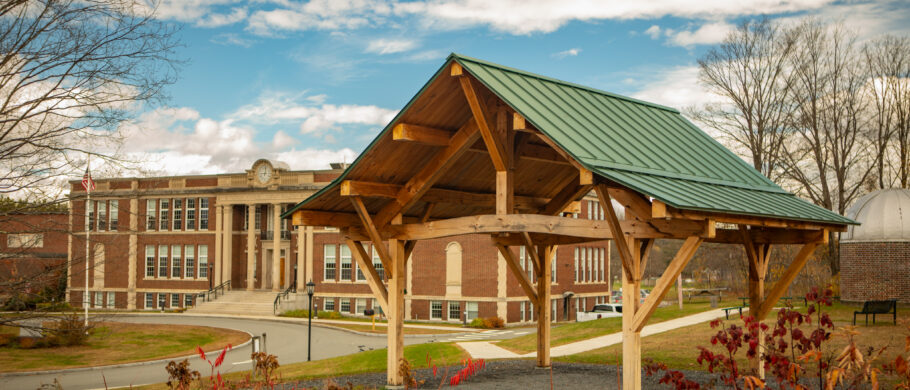

The “Flared Pavilion” is similar to our “Classic Pavilion.” It is a bit larger and has a beautifully designed flared roof and curving tie beams reminiscent of the classic looking Japanese teahouse. The Flared Pavilion comes in two sizes 24’6” x 25’ (612 SF of roof coverage) and 38′ x 25′ (950 SF of roof coverage). Both are great options for extra classroom space.


A Unique Roof System Makes the Most of the Space

This flared roof pavilion is a two bent, king post frame with hefty roof purlins and ridge that run 26′ horizontally from gable to gable. These members are supported by principal rafters which complete the triangular truss assemblies which rest on 24′ curved tie beams.  A unique feature of this frame is the corner posts’ tenons that pass through the tie beams and terminate in the principal rafters.

Extra care needs to be taken with an outdoor structure like this. At the ground level, where the possibility of wind driven rain and snow is present, White Oak posts are used to ensure rot resistance. Higher up and completely protected by the roof, White Pine makes up the remainder of the heavy timber members. Rough cut Pine boards make up the roof sheathing which is capped with metal standing seam roofing.
